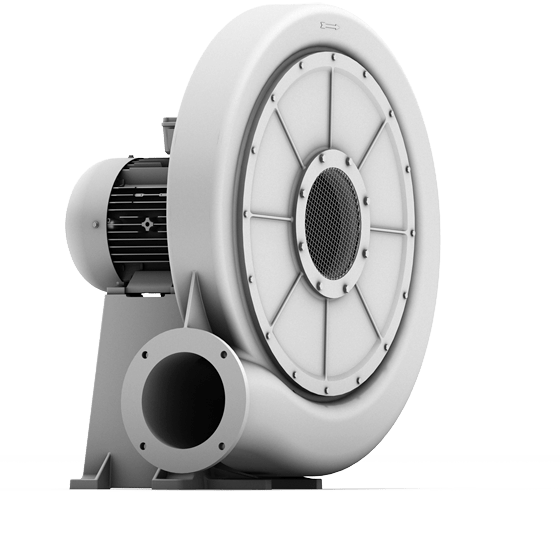

RD (medium-pressure radial fan)

Do you need both pressure and flow rate for your air application? Our medium-pressure fans from the RD series offer a balanced ratio of flow rate and pressure for every work requirement. With their robust, cast-aluminium housing and extensive performance range, they meet the requirements of various industries.

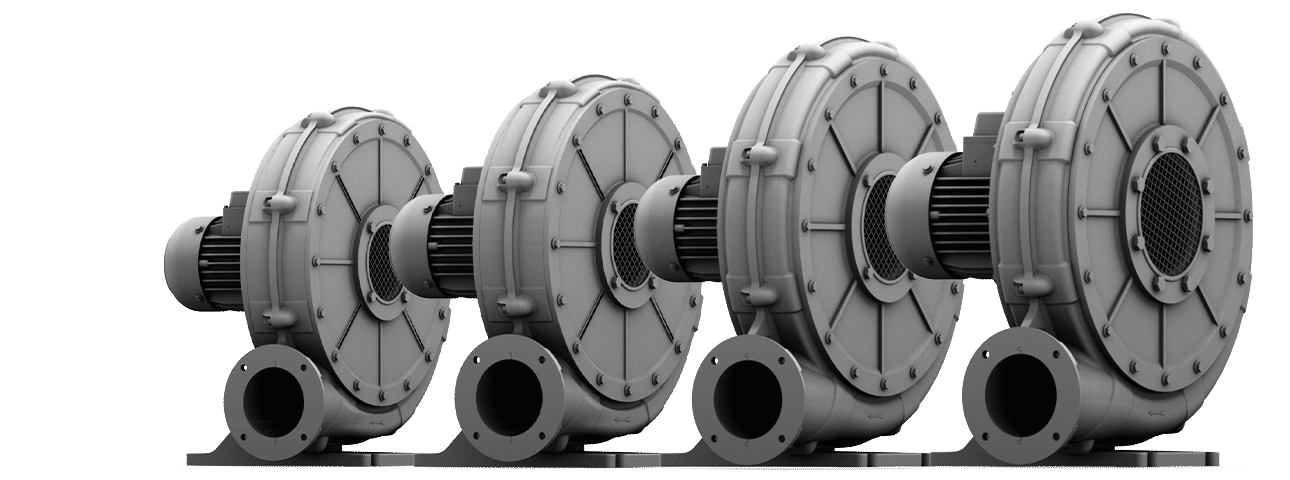

The RD series includes 18 different sizes offering air flow rates from 5.9 m³/min to 142 m³/min and pressures from 1,300 Pa to 9,600 Pa. The use of a frequency converter enables precise and energy-efficient control for specific applications. The extensive range of accessories also allows adaptation to various applications and installation situations.

All benefits at a glance

• Logical performance graduation

• Ready-to-install design with three-phase motors or single-phase      alternating current motors

• High performance capability in a compact design

• Long operating life at low operating costs

• High efficiency

• Low noise

• Stable design

• Optionally with preconfigured frequency converter for easy      installation

• Practical accessories

Ideal for these applications

• Conveyance of large air volumes with low and medium system      resistances

• Extraction of gases and vapours

• Cooling of apparatus and machine parts

• Ventilating of rooms

• Draught reinforcement in chimneys

• Air supply for gas, oil and coal burners

• Drying of different types of parts

• Forced ventilation of electrical machines


　Elektror RD-ATEX blowers available in ATEX

Radial fans in a cast aluminum housing. Explosion-proof design in accordance with the DIN EN 14986 standard - Design of fans for operation in potentially explosive atmospheres. Versions available for zones 1, 2, and 22. The impeller is made of stainless steel with backward-curved blades.

Centrifugal fans

Aluminium

Catalogue RD
