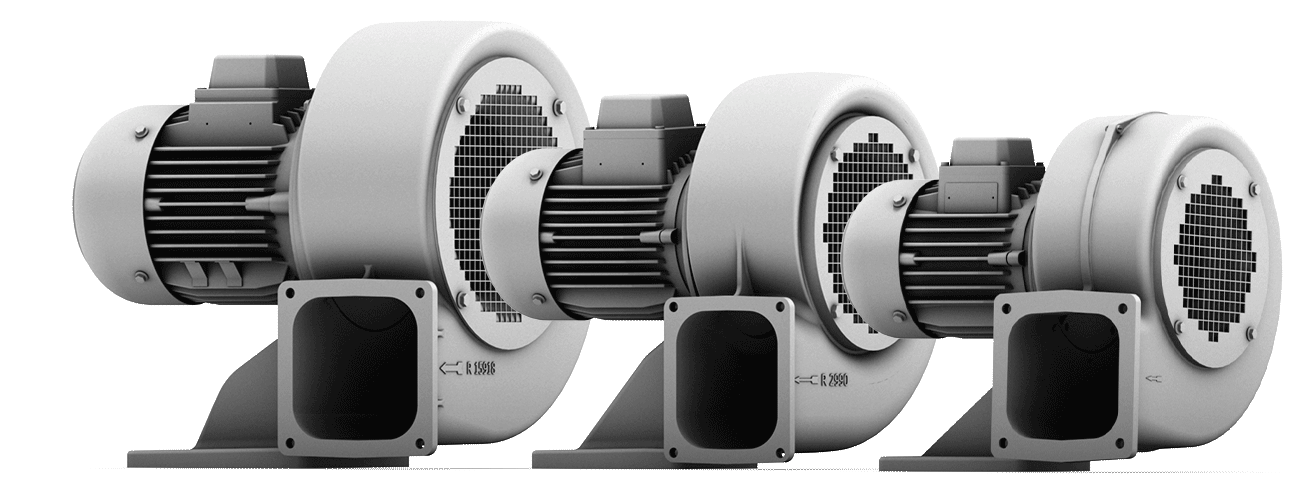

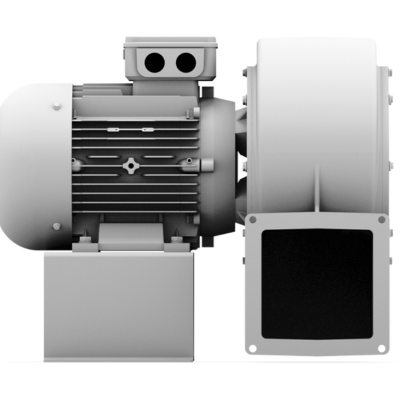

ND (low-pressure radial fan)

The ND series encompasses 23 sizes, providing a vast selection of operational points in the low-pressure range, with air flow rates between 3.8 m³/min and 95 m³/min, and pressures ranging from 480 Pa to 2,500 Pa. Each fan's performance can be precisely and efficiently tailored to specific needs through the use of a frequency converter. A wide array of accessories further allows for mechanical customization to fit different applications and installation requirements.

All benefits at a glance

• Logical performance  graduation

• Ready-to-install design  with three-phase motors or single-phase alternating current motors

• High performance  capability in a compact design

• Long operating life at  low operating costs

• High efficiency and low  noise

• Stable designs

• Optionally with preconfigured frequency converter for easy installation

• Practical accessories

Ideal for these applications

• Conveyance of large air volumes with low and medium system resistances

• Extraction of gases and  vapours

• Cooling of apparatus and machine parts

• Ventilating of rooms

• Draught reinforcement in chimneys

• Air supply for gas, oil  and coal burners

• Drying of different types of parts

• Forced ventilation of electrical machines

ND-ATEX  blowers available in ATEX

Radial fans in a cast aluminum housing. Explosion-proof design in accordance with DIN EN 14986 standard - Design of fans for potentially explosive atmospheres. Models available for zones 1, 2, and 22. The impeller is made of stainless steel with forward-curved blades.

Centrifugal fans  Aluminium

Catalogue ND
