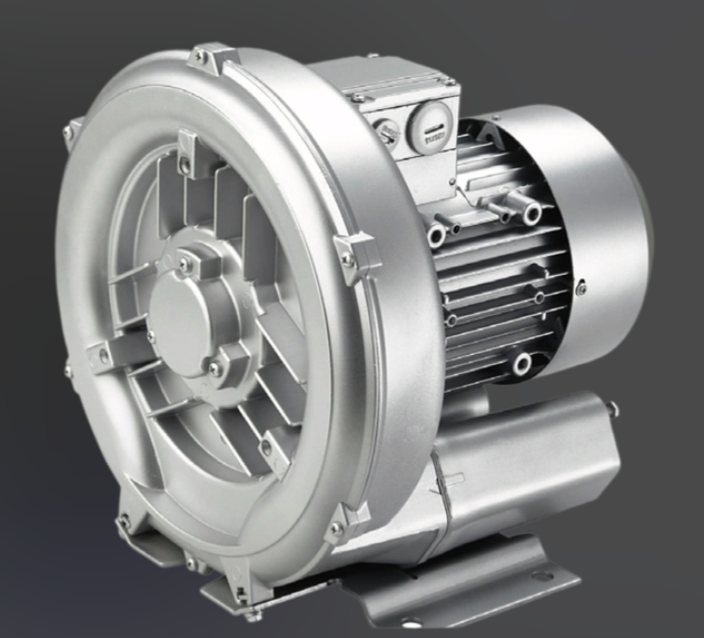

Gardner Denver & Elektror Side Channel Blower Wear Parts: Interchangeability Standards & Guide
In the field of industrial air technology, maintaining the efficiency of side channel blowers (vortex blowers) is critical. A common question arises regarding the interchangeability of spare parts between major brands like Gardner Denver and Elektror.
It is crucial to understand that wear parts are generally NOT interchangeable by default. While a few standard components can be swapped if parameters match exactly, core proprietary components are specific to each brand and model.
1. Interchangeability Reference Table
Below is a detailed breakdown of common wear parts and their compatibility criteria:
| Part Type | Interchangeability Status | Key Verification Points |
|---|---|---|
| Impeller | Not Interchangeable | Dimensions, blade count, dynamic balance precision, installation shaft diameter, housing matching clearance. |
| Seals / Oil Seals | Not Interchangeable | Shaft diameter, cavity dimensions, seal lip design, material (temp/wear resistance), installation groove specs. |
| Housing Gaskets / O-rings | Not Interchangeable | External dimensions, thickness, hole positions, material hardness. |
| Bearings | Interchangeable (If params match) | Bearing model (e.g., SKF/NSK), ID/OD/Width, clearance (e.g., C3), seal type (e.g., 2RS/ZZ). |
| Filter Mat / Mesh | Interchangeable (If params match) | Dimensions, pore size/filtration grade, weight (gsm), heat resistance, mounting slot fit. |
| Transmission Belt | Interchangeable (If params match) | Belt model (e.g., V-belt profile), length, width, tooth profile specifications. |
| Silencer | Interchangeable (If params match) | Port diameter (thread/flange specs), matched airflow/pressure range, installation method. |
| Motor Cooling Fan | Not Interchangeable | Dimensions, mounting holes, shaft diameter, speed rating. |
| Fasteners / Rivets | Interchangeable (If params match) | Specifications (size), material, strength grade, thread precision. |
2. Non-Interchangeable Parts (Core Components)
Impellers: Different models feature unique blade designs, dimensions, and dynamic balance standards. The installation gap (clearance) is extremely precise. Using a non-original impeller can lead to severe vibration, efficiency loss, or catastrophic blower failure.
Seals & Oil Seals: Designed for specific shaft diameters and housing cavities. Non-OEM seals often differ in material and lip design, leading to air leakage or oil seepage.
Housing Accessories: Items like impeller seal rings and port gaskets are custom-molded to the specific blower housing structure.
3. Potentially Interchangeable Parts (Standard Components)
Bearings: If the brand (e.g., SKF, NSK, FAG), model number, dimensions, internal clearance (e.g., C3 for high heat), and seal type are identical, they can be used across brands.
Filters & Belts: Consumables like filter cotton or V-belts are interchangeable provided the physical dimensions, density, and strength ratings match the original specifications.
Silencers: Universal silencers can be used if the connection port (thread/flange) and the flow/pressure capacity meet the blower's requirements.
4. Procurement Advice
Core Parts: Always prioritize Original Equipment Manufacturer (OEM) parts for impellers and seals to ensure stability and fit.
Standard Parts: If sourcing third-party standard parts (bearings/filters), strictly verify all technical parameters. Conduct small-batch testing before bulk purchasing.
Documentation: Always request product certificates and specification sheets to avoid equipment downtime caused by mismatched parameters.
