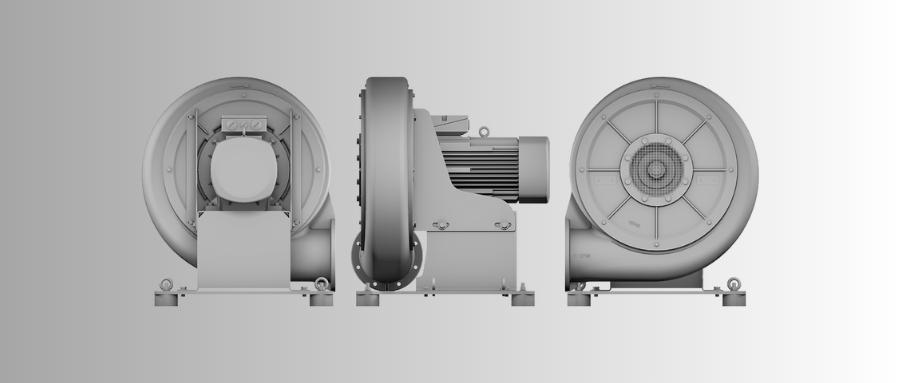

Essential Maintenance Guide for Elektror HRD High Pressure Centrifugal Blowers
To ensure the optimal performance and longevity of your German Elektror HRD High Pressure Centrifugal Blower, regular maintenance is crucial. Follow these key steps:
1. Regular Cleaning for Ventilation & Heat Dissipation
Weekly: Clear dust and debris from the inlet/outlet to prevent airflow blockage.
Monthly: Remove the motor end cover and use compressed air to clean dust from the windings.
Quarterly: Clean oil and dirt from the impeller and casing walls to prevent imbalance.
Note: Always power off before cleaning. Use a soft brush or dry cloth. Never wash electrical parts directly with water.
2. Proper Lubrication to Reduce Bearing Wear
Monthly: Check bearing lubrication. Top up with matching high-temp grease (filling 1/2–2/3 of the cavity).
Semi-annually: Replace grease completely after cleaning the old grease from the cavity.
Tip: Always use grease that matches the blower model (e.g., lithium-based) and avoid mixing types.
3. Detailed Inspections to Prevent Failures
Daily: Check belt tension (10–15 mm deflection is ideal). Adjust if too loose (slipping) or too tight (snapping).
Weekly: Tighten bolts on the casing and bearing housing to prevent vibration.
Monthly: Check coupling alignment and inspect seals (shaft seals, gaskets) for aging or leaks.
4. Real-time Monitoring & Record Keeping
Monitor motor current and temperature during operation (casing temp should not exceed 80°C). Stop immediately if spikes occur.
Maintain a maintenance log to track cleaning, lubrication, and repairs for better predictive maintenance.
